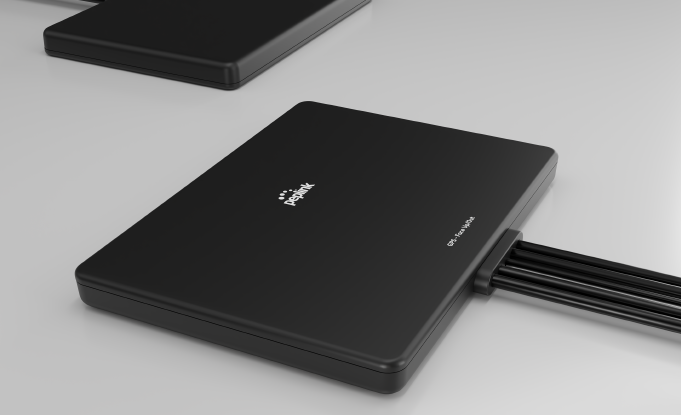

Peplink Slim 40G Panel Antenna 617 Mhz to 6 GHz - 4 Cellular plus GPS

Peplink Slim 40G Panel Antenna 617 Mhz to 6 GHz - 4 Cellular plus GPS

https://www.dcitech.com/web/image/product.template/7895/image_1920?unique=8dbe21f

Flat panel antenna 180 mm x 130 mm x 15 mm thick. Cable Length: 6.5 ft / 2M
3.6dBi: 617-960MHz, 6.1dBi: 1710-2700MHz, 6.7dBi: 3400-4200MHz, 8.1dBi: 5000-6000MHz

CAD$ 274.00 274.0 CAD CAD$ 189.00

CAD$ 189.00

Contact us for pricing

    This combination does not exist.

    Peplink Slim 40G Panel Antenna 617 Mhz to 6 GHz - 2 Cellular, 2 WiFi plus GPS

    Ultra Wide Band

    Wide frequency range (600-6000MHz) for LTE and 5G connections, including B71.

    3.6dBi: 617-960MHz

    6.1dBi: 1710-2700MHz

    6.7dBi: 3400-4200MHz

    8.1dBi: 5000-6000MHz

    Built for 5G and GPS

    Omni-directional 4×4 MIMO mobile antenna for the best performance.

    Product Dimensions 7.09"x5.12"x0.59" / 180x130x15mm

    Cable Length: 6.5 ft / 2M

    Note:

    Slim 22G is equipped with 2×2 MIMO mobile antenna

    Slim 40G is equipped with 4×4 MIMO mobile antenna.

    Wi-Fi antenna only available for Slim 22G.


    Slim 40G Datasheet
