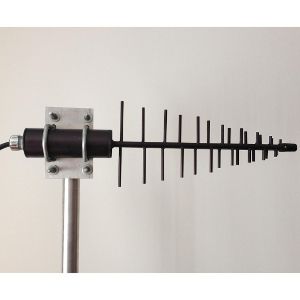

8 dBi Yagi Wideband Cell Ant, 2' Cable N-Female
Heavy Duty Wide-Band Yagi 8dBi Gain Cellular Antenna with mounting clamp, 690-2700 MHz, N-Female connector
Wavelink 8 dBi Heavy Duty Wideband Cellular Antenna (690 - 2700 MHz)
The HDPROWB727-8 is engineered to meet or exceed the requirements of multi-band, high gain, professional-grade log-periodic yagi antenna. This antenna provides 8 dBi gain and operates effectively across the operating range of 690-2700 MHz with a VSWR of 1.5:1 or less. All WaveLink Professional Grade antennas are manufactured using a high strength 6061-T6 aluminum. The directive elements are welded to the boom completely eliminating misalignment problems. The antenna is also electrically one piece, effectively eliminating inter-mod issues and future performance degradation. The HDPROWB727-8 is black anodized for appearance and corrosion resistance. Integrated 2' of LMR400 cable with an N-Female connector.
Includes mounting bracket WC1005 which allows mounting on 1" to 2 3/8" masts.
Features
- 690 - 2700 MHz (VSWR ≤ 1.5)
- 8 dBi Nominal Gain
- 72° Horizontal Beamwidth (3dB)
- 70° Vertical Beamwidth (3dB)
- 20 dB Front To Back Ratio
- 50 W Power Rating
- Mounting Bracket Included
- 2' Heavy Duty LMR-400 Cable
- N-Female Connector
- Dimensions: 20.5"x 8"
- Weight: 2 lbs
- 125 mph Wind Velocity Rated
