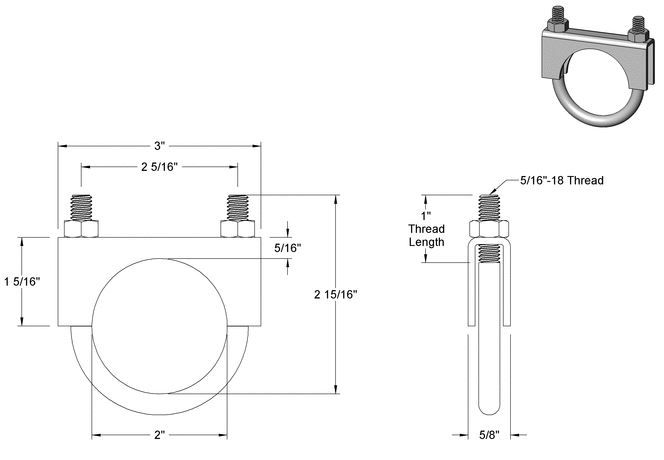

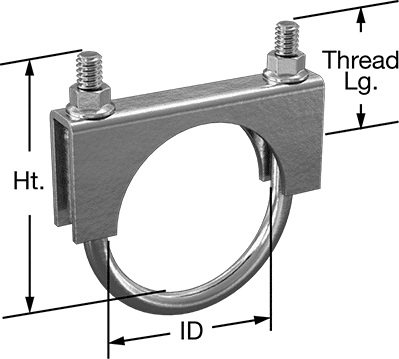

U-Bolt and Clamp for 1 1/2" Sched 40 Mast
| Thread Size | 5/16"-18 |
| ID | 2" |
| For Pipe Size | 1 1/2 |
| For Rigid Conduit Trade Size | 1 1/2 |
| Height | 2 15/16" |
| Thread | |
| Length | 1" |
| Capacity | Not Rated |
| Material | Zinc-Plated Steel |
| Center-to-Center | 2 5/16" |
| Leg Diameter | 5/16" |
| Includes Mounting Plate | Yes |
| Mounting Plate | |
| Material | Zinc-Plated Steel |
| Color | Gray |
| Length | 3" |
| Width | 5/8" |
| Thickness | 5/16" |
| Number of Nuts Included | 2 |
| Nut | |
| Style | Hex Nut |
| Material | Steel |
The rounded mounting plate on these U-bolts fully surrounds pipe, conduit, and tubing for a more secure fit than other U-bolts. They are also known as muffler clamps.
Zinc-plated steel U-bolts have good corrosion resistance in most environments.
