LTE Cellular Omni Antenna 698-4200 MHz

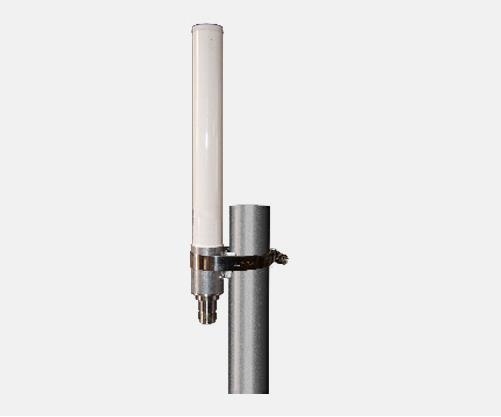

The OC69421 antenna is an expanded bandwidth omnidirectional antenna covering the global cellular bands including many mid-band sub-6GHz 5G and CBRS frequencies. It can be used in both indoor and outdoor applications.
Note: Does not cover the lower 600 MHz bands like cellular band 71
Features
- Works for LTE700/Cellular/PCS/AWS/MD,WiMAX 2300/2500, and GSM900/GSM1800/UTMS/LTE2600/3300-4200 bands.
- Good for indoor and outdoor applications
- Omnidirectional antenna pattern with gain 1.5 dBi at 698-960 MHz, 3.5 dBi at 1710-2700, 5.0 dBi at 3300-4200 MHz
- N-type female connector
- Vertical polarization
- Mast or pole mountable
- 10 Watt maximum power
- Temperature range -40° C to +70° C
