3 to 5 dBi Cellular Omni Base Antenna 603-960 MHz, 1710-2700 MHz

3 to 5 dBi Cellular Omni Base Antenna 603-960 MHz, 1710-2700 MHz

https://www.dcitech.com/web/image/product.template/6537/image_1920?unique=4bd0cf9

Wilson 304422 Equivalent
N-Female Connector and right angle pole mount

CAD$ 169.00 169.0 CAD CAD$ 169.00

CAD$ 169.00

Contact us for pricing

    This combination does not exist.

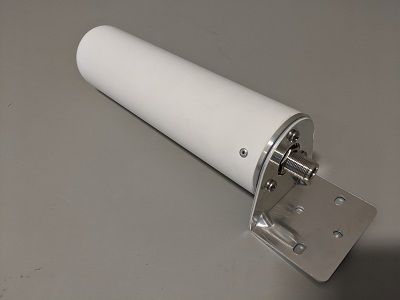

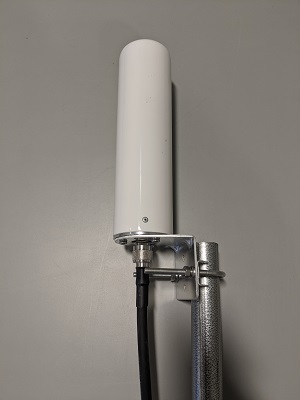

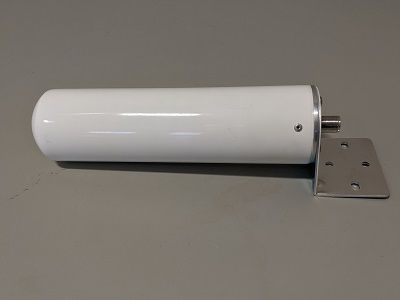

    3 to 5 dBi Cellular Omni Base Antenna 603 to 2700 MHz

    Covers all Cellular Bands 600/700/800/900/1700/1800/1900/2100/2300/2500/2600 MHz.  The antenna transmits and receives across the cellular RF Bands and is matched with the latest modulation standards for uses in the 3G/4G/LTE spectrum applications. The rugged, ABS UV-resistant housing with stands harsh outdoor applications.



    Electrical Specifications:

    • Frequency range: (MHz) 603-960/1710-2700

    • Polarization: Vertical

    • Impedance: 50 ohm

    • VSWR: 1.5

    • Maximum input power(W): 100

    • Lightning Mitigation: DC Ground

    • Gain: 3, 5dBi

    • Half-power beam width: Horizontal: 360 Vertical:60

    • Connector Type: N-Female

    • Connector position: Bottom

    • Size(mm): 63×240

    • Antenna weight(kg): 0.58

    • Wind Cross Section area: Ft 0.2

    • Rated wind velocity(km/hr): 130

    • Reactor material: Copper

    • Material: ABS UV Stable

    • Color: White

    • Operating temperature: -40~+55C

    • Mounting hardware: Alum and Stainless Ubolts

    • RoHS Compliant 2002/95/EC/2003/11/EC

    Datasheet
