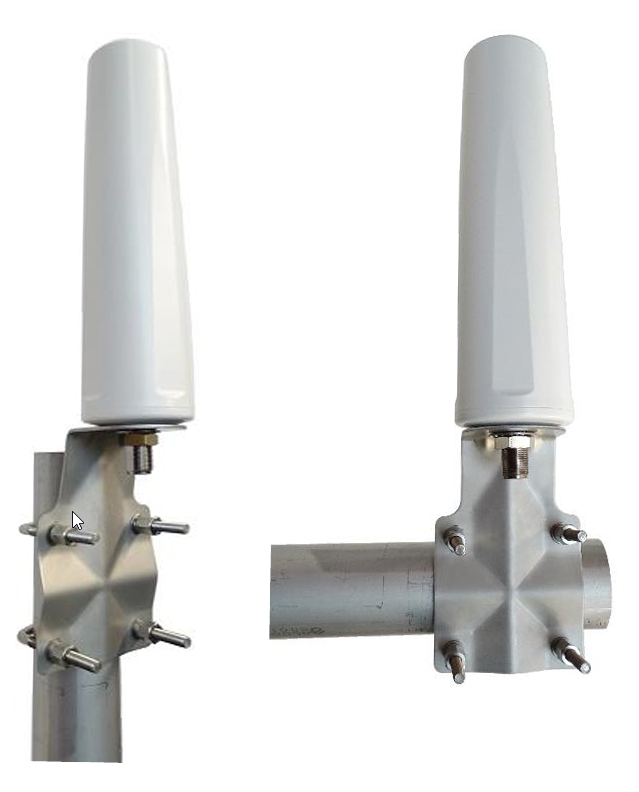

Outdoor 5G/4G Radome Omni Dipole Antenna RO600/71NFKIT – 617 to 7125 MHz
Features & Applications:
- 617-960/1450-7125MHz
- WiFi 6E, 4G/5G FR1
- Includes Band 71 (617-698MHz)and CBRS Bands 42 and 48 (3400-3700MHz)
- Dual Band WiFi Support
- Omni Directional radiation pattern
- Average peak gain: 617-960 MHz 2.5dBi, 1450-4200 MHz 4.0dBi, 4400-7125 MHz 4.3dBi
- Size: Dia. 2.45” (62.2mm) Height 8.64” (219.4mm)
- N-Female Connector (720-hour salt spray rating)
- DC Grounded
- Bracket, mounts to Ø1”-2.12” (25.4-54mm) pole
- 720-hour salt spray rating
