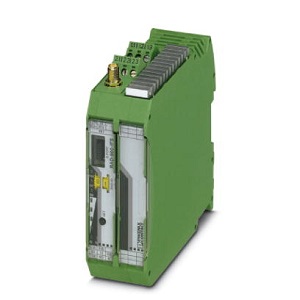

Radioline 900 MHz Transceiver (DIN)
Bidirectional, Radioline 900 MHz transceiver for wireless transmission of serial and I/O data
Bidirectional, Radioline 900 MHz transceiver for wireless transmission of serial and I/O data.
Radioline is the new wireless system for large systems. Special features include extremely easy assignment of inputs and outputs by simply turning the thumbwheel - without any programming. Radioline transmits I/O signals (I/O mode) or serial data (serial mode) and is therefore very versatile. Alternatively, I/O signals can now also be connected to controllers directly using the Modbus protocol (PLC/Modbus RTU mode).
Extended temperature range, -40 °C to +70 °C
Range of several kilometers thanks to adjustable data rates for the wireless interface (16 ... 500 kbps)
Integrated RS-232/RS-485 interface
Quick and easy startup without programming
High degree of reliability due to Trusted Wireless 2.0 technology (AES encryption, frequency hopping method, and coexistence management)
Mesh networks of up to 250 devices
