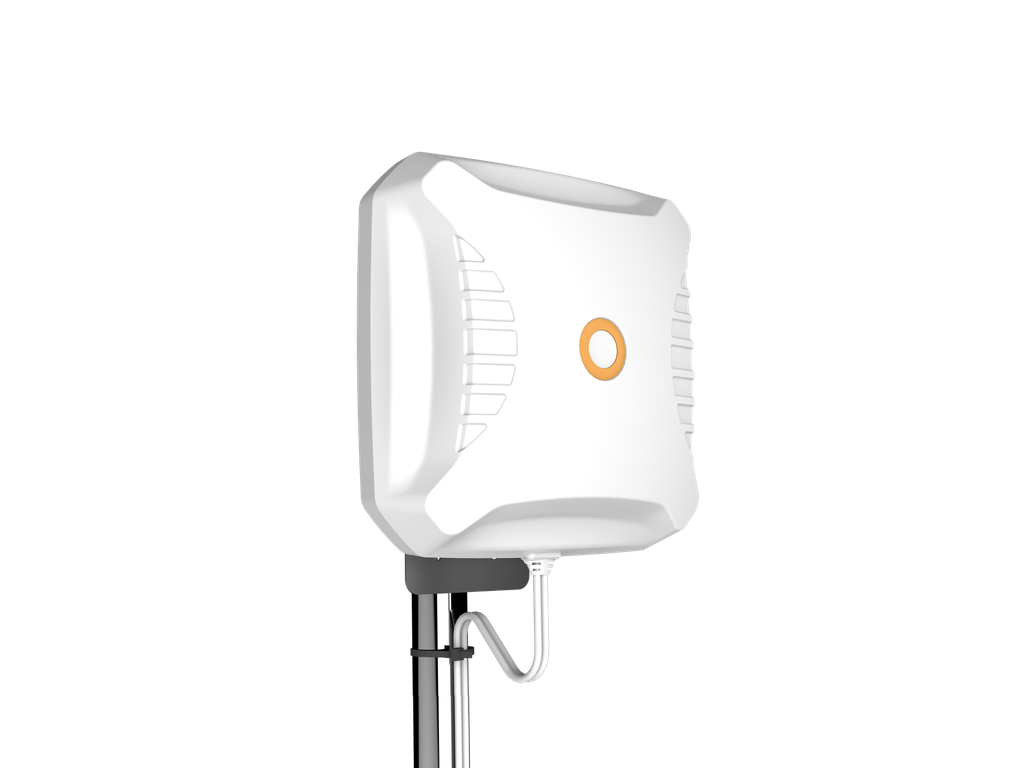

Dual Polarized High Gain 9 to 11 dBi Gain 4G/5G Directional Antenna

Dual Polarized High Gain 9 to 11 dBi Gain 4G/5G Directional Antenna (2X2 MIMO)
617 - 4200 MHz, 9 to 11dBi; 2x2 MIMO

The XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna. The antenna enclosure

effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial

technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield

exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance

of the antenna.

New advanced metamaterial technology, exceptional performance over the main 4G/5G bands

High Gain for the antenna size, wideband 2x2 MIMO 4G/5G antenna

Backwards compatible 2G/3G/4G/LTE/5G antenna

Two cross polarised antennas in one enclosure for optimal LTE performance

IP65 weather/dust and vandal resistant enclosure

Dual N-Female Connectors
9 dBi @ 617 – 960 MHz

8.5 dBi @ 1710 -2700 MHz

11 dBi @ 3400 – 4200 MHz
