Wavelink 11 dBi Professional Grade Omni Antenna, N-Female Connector (902 - 928 MHz)
Professional Grade Omni Antenna, 902-928 MHz, 11 dBi gain, N-female connector. 5° Vertical Beamwidth (3dB), 120.5"tall x 2.5" across, Mounting Bracket Included. Weight: 12.5 lbs
Documents

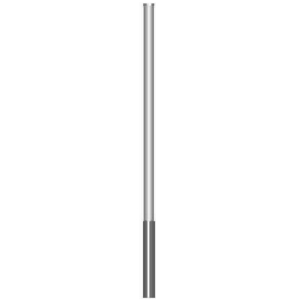

Wavelink 11 dB Professional Grade Omni Antenna (902 - 928 MHz)
The PRO902-11 is engineered to meet or exceed the requirements for a rugged, high gain outdoor omni-directional antenna. This antenna provides 11 dBi gain and operates effectively across the operating range of 902- 928 MHz with a VSWR of 1.5:1 or less. Every WaveLink Professional Grade Omni is built using a UV-resistant fiberglass radome, coupled to a machined, heavy duty aluminum base. The 6061-T6 aluminum base is anodized to protect against environmental degradation. The elongated N-Female connector is recessed within the base to minimize exposure, while the large inside diameter allows easy access for the connection. The antenna is supplied with two heavy duty mounting brackets.
Features
- 902 - 928 MHz (VSWR ≤ 1.5)
- 11 dBi Nominal Gain
- 360° Horizontal Beamwidth (3dB)
- 5° Vertical Beamwidth (3dB)
- 200 W Power Rating
- Dimensions: 120.5"x 2.5"
- Mounting Bracket Included
- Weight: 12.5 lbs
- 120 mph Wind Velocity Rated
