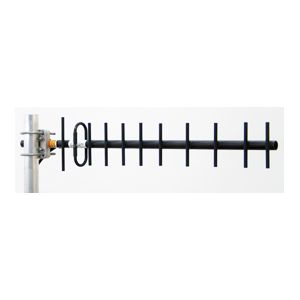

Wavelink 16 dBi Yagi Antenna (890 - 960 MHz)
The PRO890-16 is engineered to meet or exceed the requirements of a broadband, high gain, Professional Grade 900 MHz Yagi antenna. The PRO890-16 provides 16 dBi gain and operates effectively across the frequency band of 890-960 MHz with a VSWR of 1.5:1 or less. All Wavelink Professional Grade antennas are manufactured using high strength 6061-T6 aluminum. The dipole and directive elements are fully welded to the boom completely eliminating misalignment problems. The antenna is also electrically one piece, effectively eliminating intermod issues and future performance degradation. The dipole design incorporates an integral feed cable available in lengths up to 50 feet. The extended feed line option offers many benefits: dramatically reduces install time, by up to 2 hours per site, completely eliminates the connector at the antenna, improves signal strength 1/2 to 3/4 of a dB, eliminates connector weatherproofing concerns, and significantly reduces long term cost of ownership. The PRO890-16 is anodized to protct against environmental degradation even in the most severe environments.

Features
  • 890 - 960 MHz (VSWR ≤ 1.5)
  • 16 dBi Nominal Gain
  • 40° Horizontal Beamwidth (3dB)
  • 34° Vertical Beamwidth (3dB)
  • 20 dB Front To Back Ratio
  • 200 W Power Rating
  • Dimensions: 37"x 6.7"
  • 2' Cable (N-Female)
  • Mounting Bracket Included
  • Weight: 2.5 lbs
  • 125 mph Wind Velocity Rated
