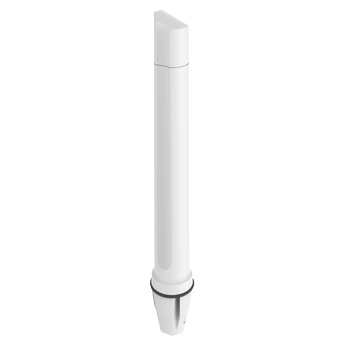

Marine 2.4 and 5.8 GHz 7.5 dBi Gain Omni Antenna
2400 -2500 MHz | 3400 - 3800 MHz | 5000 - 6000 MHz
Marine 2.4 and 5.8 GHz 7.5 dBi Gain Omni Antenna
The OMNI-496 is an omni-directional antenna that works from 2400 -2500 MHz | 3400 - 3800 MHz | 5000 - 6000 MHz
The OMNI-496 is a dual-band Wi-Fi Omni-directional antenna, developed by Poynting Antennas. The antenna can connect to any Wi-Fi access point whether it is older Wi-Fi technology or new dual-band 802.11ac enabled Wi-Fi technology. The antenna can resolve channel saturation and provide the ultimate in Wi-Fi performance and flexibility. The OMNI-496 is an IP68 marine version of its urban, industrial & commercial counterpart; the OMNI-296. The antenna operates in two frequency bands 2.4 GHz and 5 GHz, offering excellent utilization of the radio spectrum. The antenna has a maximum gain of 6 dBi at 2.4 GHz band and 7.5 dBi in the 5 GHz band, which offers the best performance with reliable connections. The antenna has an N-Type female connector at its base which can be terminated to a cable of the desired type and length.
Gain 6.2 dBi at 2.4 GHz and 7.2 dBi at 5.8 GHz
Input impedance: 50 Ohm (nominal)
DC Short: Yes
N-Female Connector
Purpose-built antenna for marine and coastal applications
Lightweight
UV and saltwater resistant
Robust and weather-resistant
