Wideband 2 in 1 Antenna. Dual LTE 2 Meter Cables

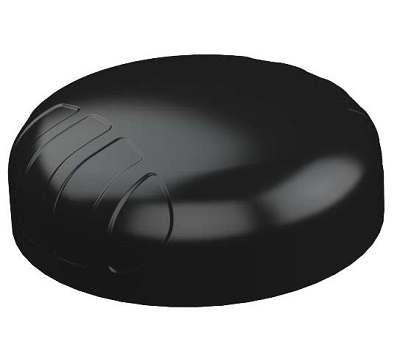

This is a compact dome antenna 3.9 inch diameter, 1.4 Inches high. 617 Mhz to 4.2 Ghz, max 6 dBi Gain
Wideband Dual LTE
This is a 2-in-1 antenna system within a single housing, providing 2x Cellular. This antenna is specifically designed for the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine, and the Agricultural/Farming markets.
It offers 2x Cellular MIMO covering the 617 MHz to 4200 MHz bands, as well as the new emerging LTE and 3.8GHz CBRS bands. This antenna, due to its wideband capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 4.2 GHz.
GSM/3G/4G/LTE Electrical Specifications
Frequency Bands: 617-960 MHz, 1427 – 1517 MHz, 1710 – 2700 MHz, 3400 – 4200 MHz
- 0 dBi @ 617-960 MHz, 1 dBi @ 1427-1527 MHz, 5 dBi @ 1710-2700 MHz, 6 dBi @ 3400-4200 MHz
LTE VSWR: <2.5:1
Feed Power Handling: 10 W
Input impedance: 50 Ohm (nominal)
Polarization: Linear Vertical x 2
Wind Survival: 136 mph
Temperature Range (Operating): -40°F to +175°F
Water/particle ingress: IP68
Salt Spray: MIL-STD 810F/ASTM B117
Operating Relative Humidity: Up to 98%
Product Dimensions: 3.9″ diameter x 1.4″ tall
Weight: 18.5 oz.
Cable Length: 82 Inches (2 Meters)
Connector: 2 x SMA male
Comes with a through-hole mount, pole/side mount and a magnetic mount
