    Wideband Dual LTE - custom build with short 2 ft cables

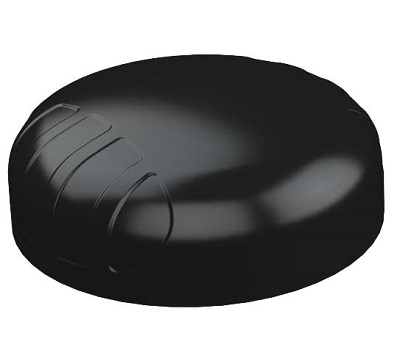

    This is a 2-in-1 antenna system within a single housing, providing 2x Cellular. This antenna is specifically designed for the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine, and the Agricultural/Farming markets.

    It offers 2x Cellular MIMO covering the 698MHz to 3800MHz bands, as well as the new emerging LTE  and 3.8GHz CBRS bands. This antenna, due to its wideband capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz.

    GSM/3G/4G/LTE Electrical Specifications

    • Frequency Bands: 690-960 MHz, 1710-2700 MHz, 3200-3800 MHz

    • LTE Max Gain: 6 dBi

    • LTE VSWR: <2.5:1

    • Feed Power Handling: 10 W

    • Input impedance: 50 Ohm (nominal)

    • Polarization: Linear Vertical x 2

    Environmental Specifications

    • Wind Survival: 136 mph

    • Temperature Range (Operating): -40°F to +175°F

    • Water/particle ingress: IP68

    • Salt Spray: MIL-STD 810F/ASTM B117

    • Operating Relative Humidity: Up to 98%

    Mechanical Specifications

    • Product Dimensions: 3.9″ diameter x 1.4″ tall

    • Weight: 18.5 oz.

    • Cable Length: 24 Inches (2 Ft)

    • Connector: 2 x SMA male
