Wideband 3 in 1 Antenna. Dual LTE and GPS, 2 Meter Cables

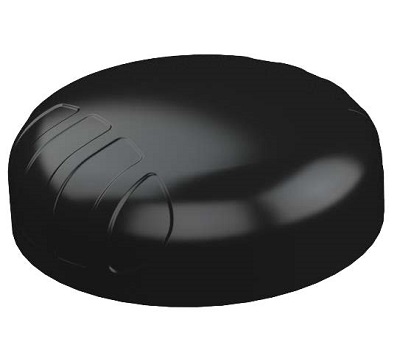

This is a compact dome antenna 3.9 inch diameter, 1.4 Inches high. 690 Mhz to 3.8 Ghz, max 6 dBi Gain and has a GPS antenna built in.
Wideband Dual LTE with GPS
This is a 3-in-1 antenna system within a single housing, providing 2x Cellular and one GPS antenna. This antenna is specifically designed for the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine, and the Agricultural/Farming markets.
It offers 2x Cellular MIMO covering the 698MHz to 3800MHz bands, the new emerging 3.8GHz CBRS bands as well as GPS/GLONASS. This antenna, due to its wideband capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz.
GSM/3G/4G/LTE Electrical Specifications
Frequency Bands: 690-960 MHz, 1710-2700 MHz, 3200-3800 MHz
- -1 dBi @ 617-960 MHz, 2 dBi @ 1427-1527 MHz, 7 dBi @ 1710-2700, MHz 8 dBi @ 3400-4200 MHz
LTE VSWR: <2.5:1
Feed Power Handling: 10 W
Input impedance: 50 Ohm (nominal)
Polarization: Linear Vertical x 2
GPS Specifications
Frequency Range (GPS): 1575.42MHz/1600MHz
GPS Antenna Gain (Max): 21+/-2dBi
VSWR: ≤1.5:1
DC Voltage: 2.7-3.3 V
Environmental Specifications
Wind Survival: 136 mph
Temperature Range (Operating): -40°F to +175°F
Water/particle ingress: IP68
Salt Spray: MIL-STD 810F/ASTM B117
Operating Relative Humidity: Up to 98%
Mechanical Specifications
Product Dimensions: 3.9″ diameter x 1.4″ tall
Weight: 0.43 Kg
Cable Length: 82 Inches (2 Meters)
Connector: 5 x SMA male
Comes with a through-hole mount, pole/wall mount and magnetic mount
