Peplink Maritime 20G Omni MIMO Antenna with GPS - SMA Male Connectors
2 cellular elements and a GPS antenna all in one integrated housing.
3.2dBi at 410-470MHz, 5.4dBi at 617-960MHz, 4.9dBi at 1710-2700MHz, 6.2dBi at 3400-4200MHz, 6.8dBi at 4900-6000MHz

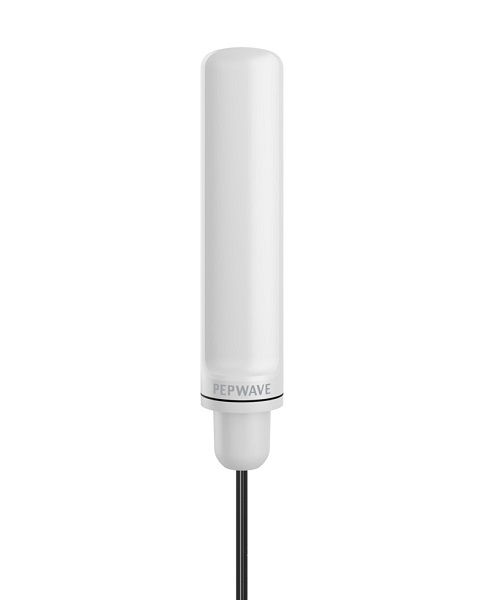

Peplink Maritime 20G Omni MIMO Antenna with GPS
2x Cellular | 1x GPS
With 2 cellular channels, the Maritime 20G is a 5G-ready antenna to serve maritime deployments with its ultra-wide bandwidth. Equipped with high gain LNA, the built-in GPS receiver is ideal for tracking. IP68 Rated and UV resistance provides quality protection from dust, water, and UV allows you to use it even in poor weather conditions.
5G Ready, 7dBi High Gain and includes an active high-performance GPS receiver ideal for location tracking.
Diameter 3.78'' / 96mm
Height 19.04''/ 483.5 mm
IP rating IP68
Operating temperature -40° - 176°F / -40° - 80°C
Cable Length 6'7" / 2m
Cable Termination SMA male
Cellular frequency bands & Gain
5.4dBi: 617-960MHz
4.9dBi: 1710-2700MHz
6.2dBi: 3400-4200MHz
6.8dBi: 4900-6000MHz
