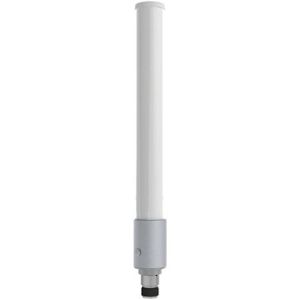

LTE Cellular Omni Antenna 698-2690 MHz
The Laird OC69271-FNM antenna is a Multi Band omnidirectional antenna with N Female connector that covers the domestic LTE700/Cellular/PCS/AWS/MDS, WiMAX 2300/2500, and global GSM900/GSM1800/UMTS/LTE2600 bands. The antenna can be used in both indoor and outdoor applications.
Features
- Works for LTE700/Cellular/PCS/AWS/MD,WiMAX 2300/2500, and GSM900/GSM1800/UTMS/LTE2600 bands.
- Good for indoor and outdoor applications
- VSWR < 2.5 between 698-960 MHz
- VSWR < 2.0 between 1710-2690 MHz
- Omnidirectional antenna patern with maximum gain between 1.5 - 3.5 dBi
- N-type female connector
- Vertical polarization
- Mast or pole mountable
- 10 Watt maximum power
- Temperature range -30° C to +70° C
