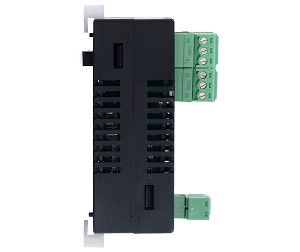

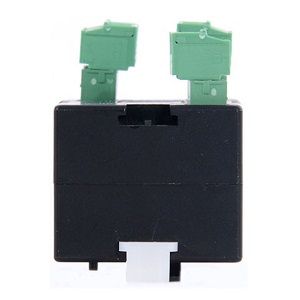

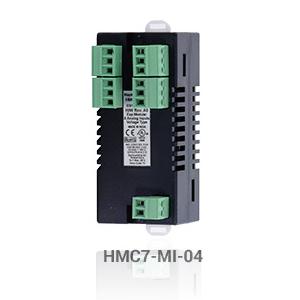

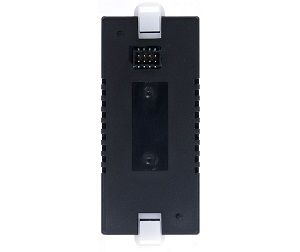

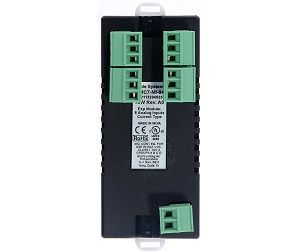

HMC7-MI-04 I/O Expansion Module, 8 Analog Current Inputs
The HMC7-MI-04 is one of several I/O expansion modules that attach to the back of Maple Systems Graphic HMCs. This module possesses 8 analog inputs that support current modes. Easily tighten wiring to the terminals with a 3/32” flat blade screwdriver.
Specifications:
Power: 3.9VDC from HMC7000 base
Analog Inputs: 8 current inputs
Resolution: 12 bit
Input Range: 0-20mA, 4 to 20mA
Value of LSB: 3.906uA
Input Impedance: 120Ω
Accuracy: At 25°C: 0.1% of full scale, 1% of full scale (-25°C to 55°C)
Input Power Supply (Required):
Input Voltage: 24VDC
Input Current: 50mA
Connection Method: Removable terminals (3.81mm pitch)
Operating Temp: 0 to 55°C
Humidity: 10% to 90% (non-condensing)
Dimensions: 3.11 x 1.18 x 1.42 inches [79 x 30 x 36mm]
