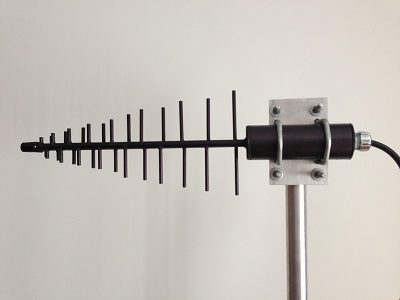

806-960/1710-2500 MHz, 9 dBi Yagi, 2' LMR400, N-Male
Includes C1005 Mount and cable has an N-Male Connector
Heavy Duty Multiband Cellular Yagi Antenna - 806-960/1710-2500 2 ft of LMR400 Feedline with a N-Male Connector
Operating Frequency (VSWR ≤ 1.5) Dual Band 806-960/1710-2500 MHz
Nominal Gain (dBi) 9
Horizontal Beamwidth (Deg-3dB) 80
Vertical Beamwidth (Deg-3dB) 93
Power Rating (W) 50 Length (inches) 18
Width (inches) 8 Antenna Weight (lbs.) 2
Cross Sectional Area (Max. Ft²) .23
Lateral Thrust at 100mph (lbs.) 5.5
Rated Wind Velocity (mph) 125
Rated Wind Velocity with 1/2'' radical (mph) 120
