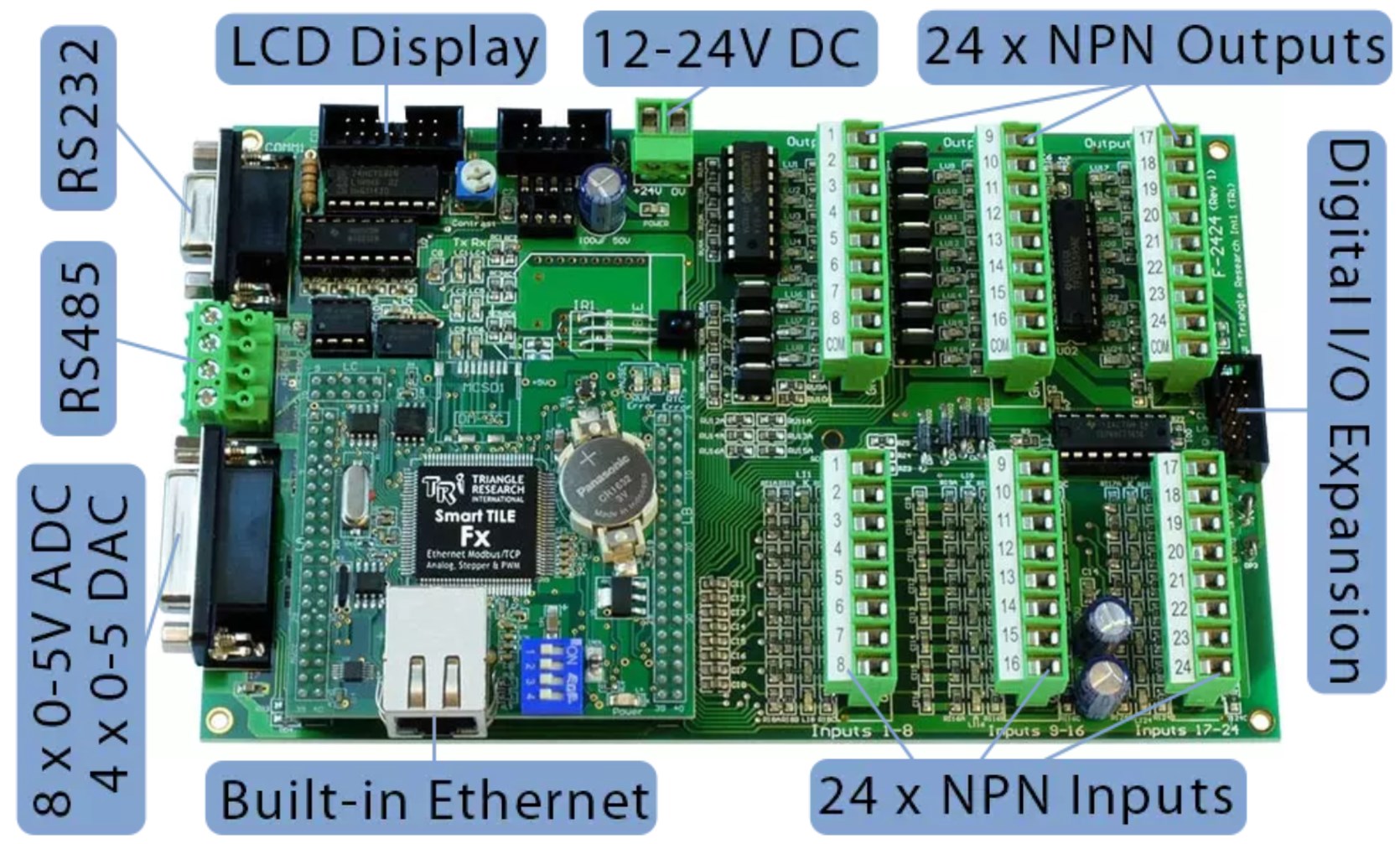

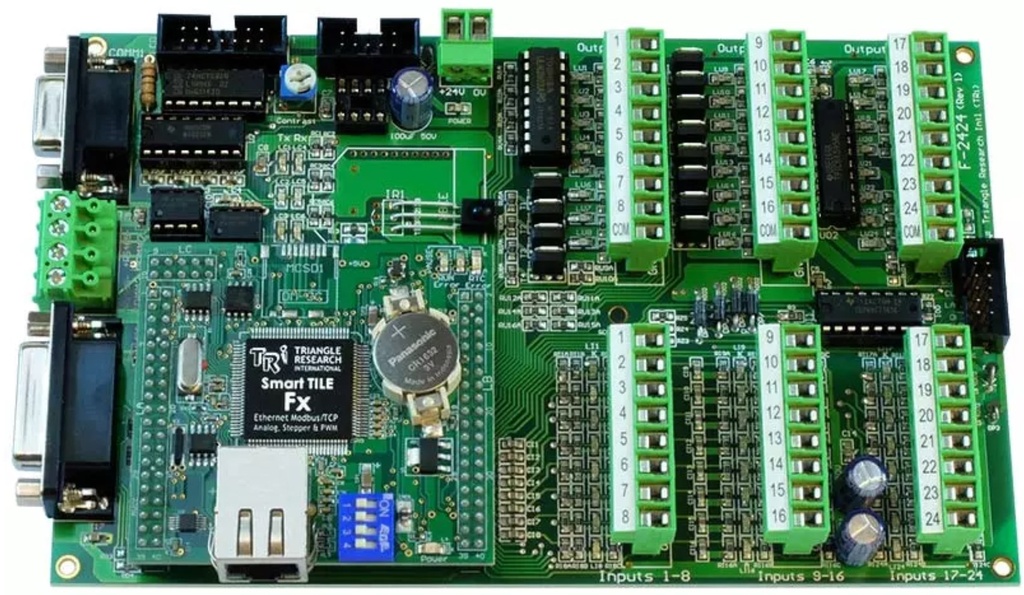

Fx2424 24 Digital In, 24 Digital Out, 12 Analog PLC

The Fx2424 PLC has 24 digital inputs, 24 digital outputs and 12 analog I/Os built-in and is expandable up to 256 digital I/Os. It is capable of controlling and/or driving up to 3 stepper motors directly with up to 4A per phase @24VDC. Its high speed digital inputs allow up to 3 quadrature encoders which may be connected to provide both position and speed information of moving devices. With 1 RS232 port and 2 RS485 ports and all of them supporting Modbus ASCII/RTU protocols, the Fx2424 is fully equipped for connectivity to a whole range of peripheral devices. Furthermore, each Fx2424 comes equipped with an IR remote control receiver for contactless data entry, and supports an optional ZigBee wireless radio module - XBee supplied by Digi International Inc. Just as notable is Triangle Research's proven i-TRiLOGI "Ladder+BASIC" programming software which makes complex programming of the Fx2424 PLC a whole lot easier than with standard ladder-logic programming! By combining the Ladder Logic program with a floating-point math-capable BASIC langugage (i-TRiLOGI version 7), this great controller is packaged to be ready immediately to interface to power meters, HVAC sensors, and/or talk to other other controllers to carry out sophisticated control tasks in a commercial building project. This highly flexible product is certainly poised for applications in factory, home and building automation. The Fx2424 PLC price-to-performance profile is positioned as much for the mid to high-end OEM machine builder and factory/plant system integrators as it is for the building automation designer. For the user who needs the integrated features and connectivity of a PLC, the Fx2424 is the perfect choice.

  • 24 NPN digital inputs
  • 24 digital output (12 x 8A NPN, 12 x 1A NPN)
  • Up to 128 digital inputs, 128 outputs using expansion boards
  • 8 analog inputs (0 - 5V, 12-bit)
  • 4 analog outputs 2 (0 - 5V, 12-bit)
  • 4 PWM capable outputs (4A)
  • 3 Stepper motor controllers (10,000 pps)
  • 3 Stepper motor drivers (unipolar)
  • 3 High speed counters (10 KHz)
  • Zigbee module (optional)
  • 1 RS232 port
  • 2 RS485 port (2-wire)
  • 1 14-pin LCD port
  • 1 Ethernet port
  • Program flash memory 23.5K words
  • 6K Non-volatile FRAM
  • IR remote control
  • 12 Light dimmer controls
  • Supports Ladder and BASIC programming
  • Modbus (ASCII,RTU,TCP) Omron C20H, ASCII host link, and user definable communication protocol support
  • Dimensions: 7.05” x 4.45” x 1.0”
  • 0 to +70 C temperature operation
  • 24 VDC
