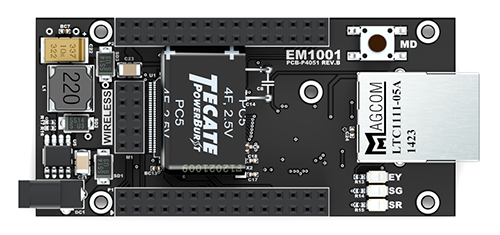

EM1001 Programmable IoT Board with Backup Supercapacitor
EM1001 Programmable IoT Board
The EM1001 is a full-featured Tibbo BASIC/C-programmable IoT Board with Ethernet, as well as optional Wi-Fi* and GPRS** connectivity. The EM1001 has four UARTs.
The board is self-sufficient – it does not require a host PCB to plug into. The RJ45 jack is mounted directly on the board. The EM1001 also contains a DC-DC regulator that can power the board and has additional current budget for external hardware.
The device's capabilities are further enhanced by the onboard flash memory with hardened fault-tolerant file system, as well as the EEPROM and RTC. The RTC backup supercapacitor can be installed on the board ("-S" ordering option) or connected externally.
The EM1001 has 54 general-purpose I/O lines and can control an external LCD, keypad, buzzer, card readers, serial devices, and other circuitry. All I/O lines are accessible through two dual-row connectors with the standard 2.54mm (100mil) pitch.
The EM1001 is a close relative of the EM1000 IoT module.* Requires the GA1000 Wi-Fi add-on, which can be connected externally or piggybacked on top of the EM1001.
** Requires a standard GPRS modem (i.e. Simcom's SIM900), to be connected to the UART #4 of the EM1001.
CPU | High-performance (T1000) |
Ethernet | 10/100BaseT(with RJ45/magnetics) |
Wi-Fi | With the GA1000 add-on(piggybacks onto the board) |
GPRS | With SIM900 or similar GPRS module(connected externally via UART #4) |
Serial Port(s) | 4 serial ports(supported modes: full-/half-duplex UART, Wiegand, clock/data) |
SPI and I2C | 4 synchronous serial ports with SPI and I2C modes |
I/O Lines | 54 |
Display | Supports externally connected LCDs and OLEDs(we offer drivers for several popular display controllers) |
Keypad | Supports external matrix and binary output keypads(of up to 64 keys) |
Sound | Can drive an externally connected buzzer |
Timekeeping | Onboard RTC(optional backup supercapacitor) |
Flash disk | 1MB for TiOS, application code, andhardened fault-tolerant file system |
EEPROM | 2048 bytes |
Power | Onboard DC-DC regulator (8 ~ 20V in, 3.3V out);3.3V power input and output |
