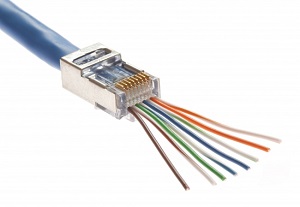

EZ RJ45 Shielded CAT 5/6 Connectors

EZ RJ45 Shielded CAT 5/6 Connectors

The EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.

• EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.

• Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.

• Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.

• Significantly improve Shannon capacity.

• Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.

• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.041mm (0.041")

• For solid round or stranded wire cables.
