F-Series Analog Interface Board

---

F-Series Analog Interface Board

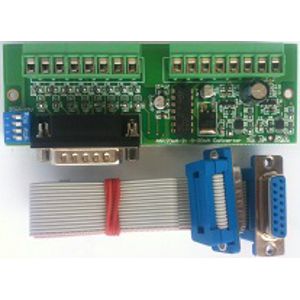

The AN20MA-2 is designed to connect easily to a FMD or F-series PLC and converts up to 2 channels of 0 - 5 V analog output voltage from the PLC to 0 - 20 mA current loop for controlling external 0 - 20 mA or 4 - 20 mA devices. AN20MA-2 also converts up to 8 channels of 0 - 20 mA or 4 - 20 mA analog signals from field devices, remote sensors or other controllers into 0 - 5 V analog input signals that the FMD or F-series PLC accepts.

---

Features

• Converts up to 2 channels of 0 - 5 V analog output into 0-20 mA or 4-20 mA
• Converts up to 8 channels of 0-20 mA or 4-20 mA analog input into 0 - 5 V output

---

Documentation

• User Manual

---
